N8 C.A.S.T. Distribution Hub and Audio Over Cat 5 System
  • C.A.S.T. Distribution Hub and Audio Over Cat 5 System

  • Completely passive operation

  • Fully-balanced, high-quality audio paths

  • 8 Inputs and 8 outputs over DB25 (Tascam wiring) (sold separately)

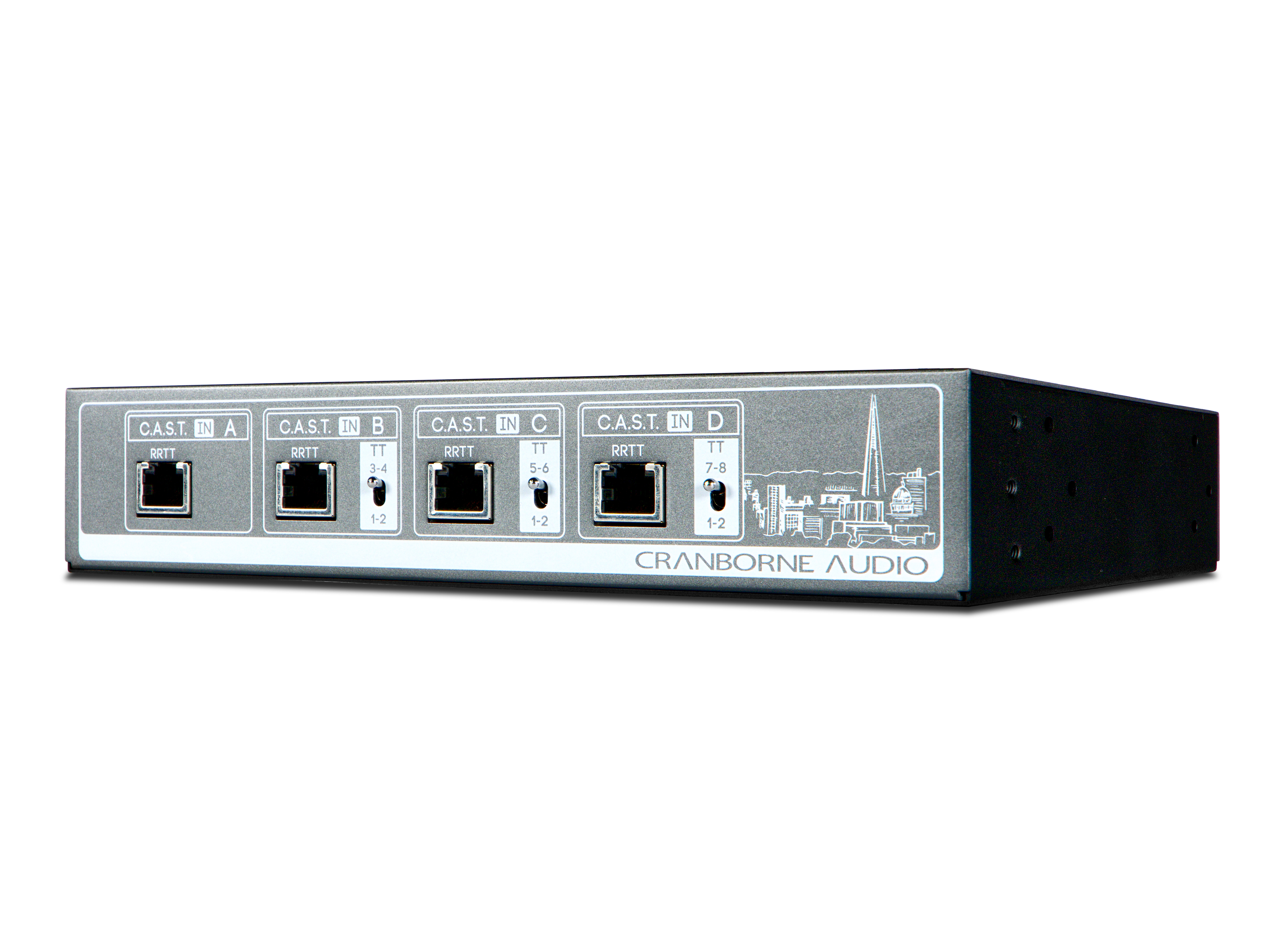

  • C.A.S.T. IN A, B, C, and D ports on RH45 with 2 dedicated Input and output paths each

  • Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft

  • Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)

  • Ruggedised metal enclosure

  • Compatible with all Cranborne Audio C.A.S.T.-enabled devices including N22, N22H, Camden EC1, and Camden EC2

  • Fully-support of 48v phantom power

  • Rack-mountable with optional Half Rack Kit (OBDRK001)

Audio Routing Made Easy

N8 is an advanced audio distribution hub that uses Cranborne Audio’s C.A.S.T. system to transform network cable (Cat 5e, Cat 6, or Cat 7) into 4-channel analogue snakes.

Audio Over Cat 5 Made Easy

A single Cat 5 cable using C.A.S.T. can replace 4 XLR cables - providing better cable management, consistent sound quality, and easier deployment during mobile recording.



Using N8 and C.A.S.T., you can use standard network cables to distribute IO, headphone amps. mic preamps, and more around your studio with plug-and-play simplicity.

C.A.S.T. Distribution Hub

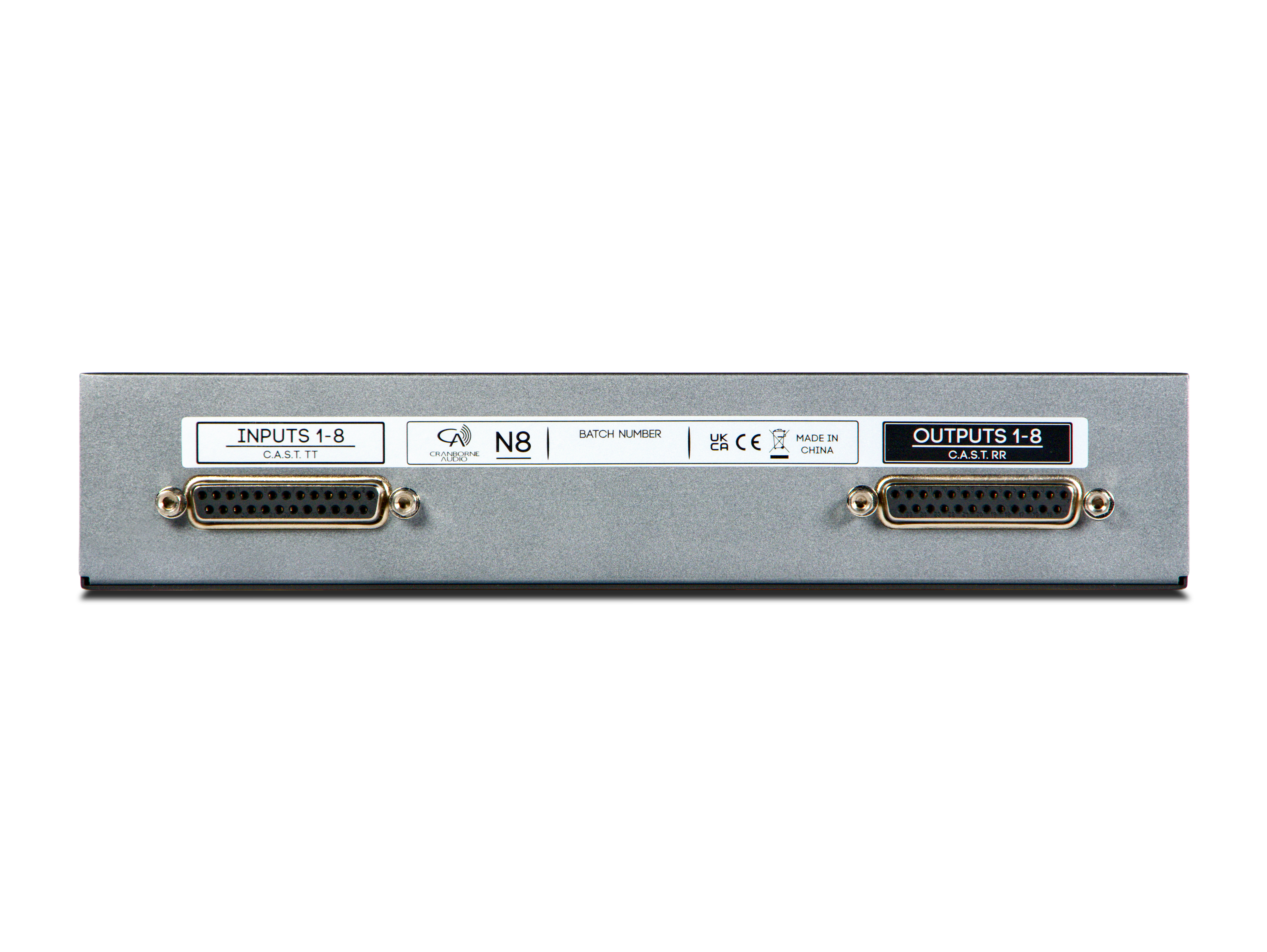

Featuring Input and Output connectors on DB25, N8 converts 8 analogue inputs and 8 analogue outputs to Cranborne Audio’s proprietary C.A.S.T. system.

With 4 dedicated C.A.S.T. ports, N8 allows up to 4 Cranborne Audio breakout boxes to be connected at once for 16 channels of audio routing with any audio interface, mixer, or audio installation.
N8_Stage_JPEG_72dpi

The Heart Of C.A.S.T. | Our Audio-Over-Cat 5 System

N8 is an advanced audio distribution hub that uses Cranborne Audio’s C.A.S.T. system to transform network cable (Cat 5e, Cat 6, or Cat 7) into 4-channel analogue snakes and breakout boxes that can be routed around the studio or stage.

Set N8 in your control room and patch directly to the IO of your audio interface via DB25. N8 then converts analogue IO from the audio interface into 4 discrete C.A.S.T. connections that can be distributed to C.A.S.T. breakout boxes such as N22 and N22H in your studio or on the stage.

In a real-world example, a vocal booth created with XLRs, would require 2 XLR cables for microphones, 2 more XLR cables for a stereo monitor mix for the singer, and a headphone amp with power. And after that, unless you're handy with a soldering iron, you'll be left with trailing XLRs and no discrete box to patch to.

N8 and C.A.S.T. replaces all of that complexity with one networking cable and neat, compact breakout boxes over distances up to 100m (330ft).

N8_Diagram_JPEG_72dpi

N8_Angle_2_JPEG_72dpi

Flexible Output Routing

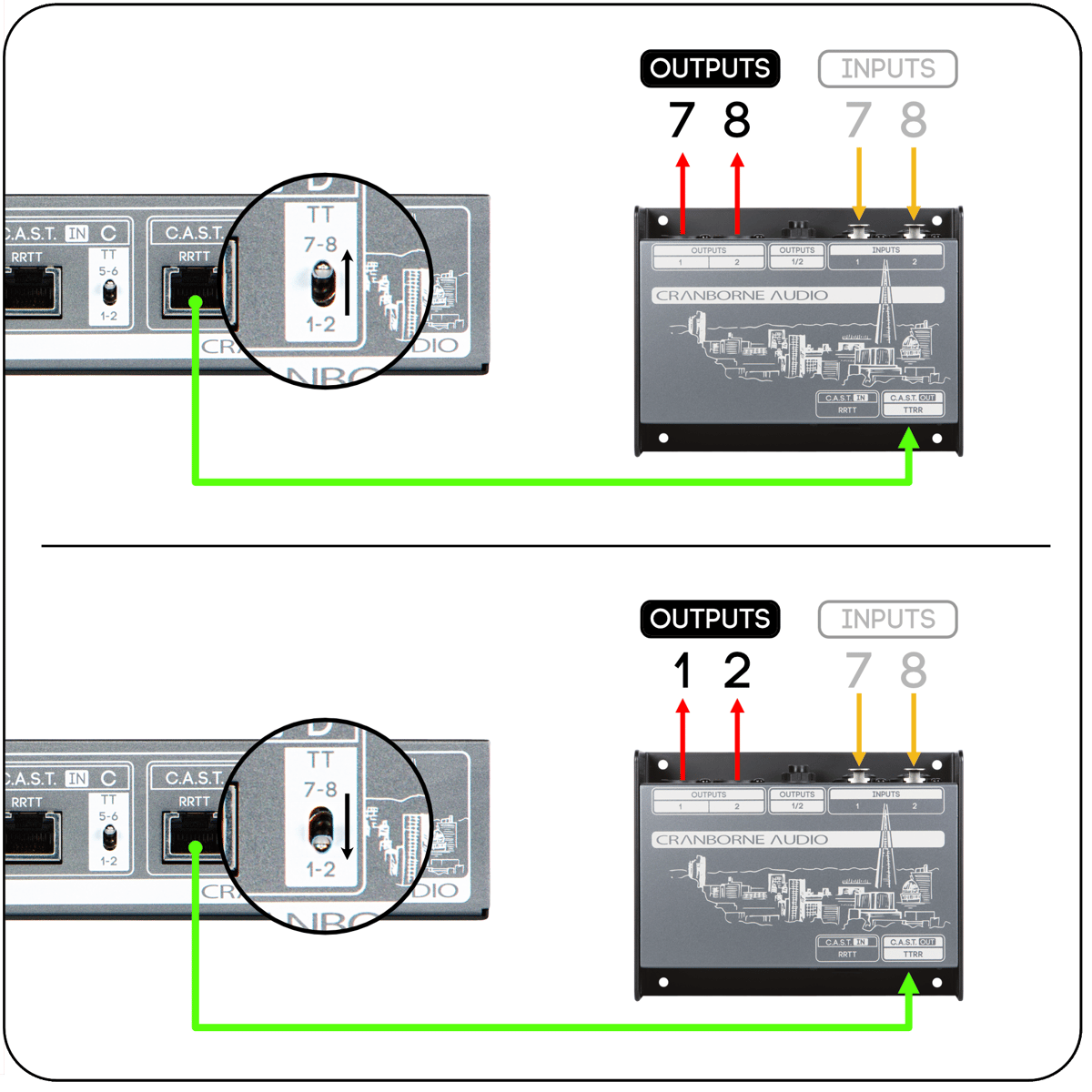

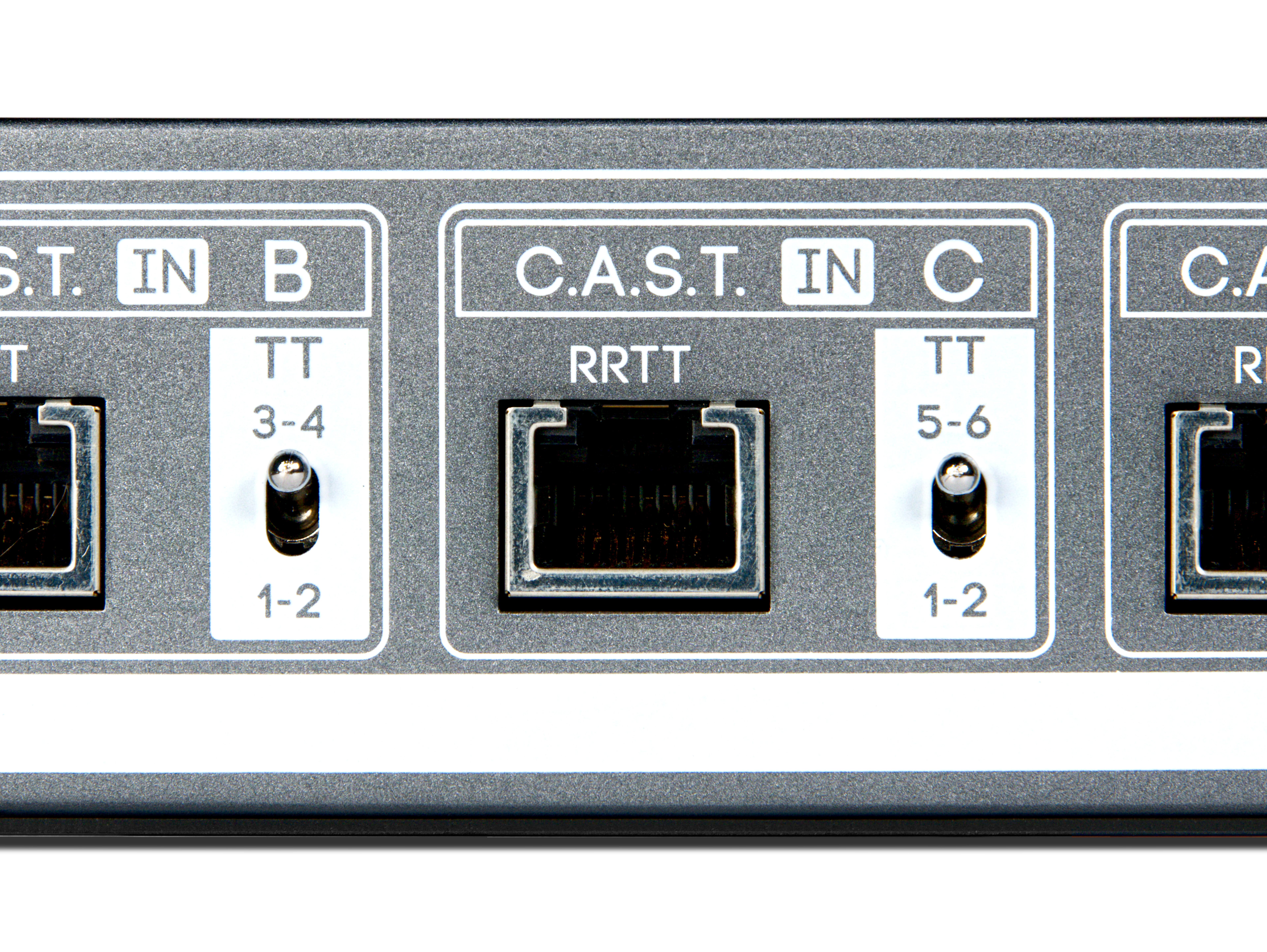

With dedicated C.A.S.T. output routing switches on the front panel, each C.A.S.T. connection on N8 can send the same stereo signal to all connected C.A.S.T. devices or separate stereo signals to each if performers need to hear their own mix.

This is perfect for broadcast installations where all outputs need to hear the program mix or for studio recording where each output needs a separate mix.

N8_Switches_Diagram

CAST_Family_JPEG_72dpi

Turn Any Space Into A Studio

C.A.S.T. is a high-quality and plug-and-play method of transporting audio from A to B with the least amount of cabling mess. Best of all, as networking cable is common-place in people’s homes, a whole studio re-wire with Cat 5e, Cat 6, Cat 7, and C.A.S.T. is cheaper than equivalent XLR looms and copper snakes. Even if you have existing shielded Cat 5 infrastructure in your home, N8 and C.A.S.T. can connect to that system and connect distant rooms with ease.

With a completely passive design, no power is required for full operation and C.A.S.T connectivity. N8 is rugged enough for the stage, small enough to hide in the rack, or rack-mountable with the optional Half-Rack Kit and it’s a cabling solution designed to transform your open space into a studio.

N8_N22H_Single_Diagram

N8_Rack_JPEG_72dpi

High-Quality Audio Over Cat 5

Do you think Cat 5 is for networking only and shouldn't be used for analogue audio? Well, networking cable is actually perfectly suited for analogue audio - here's why!

  • Networking cable isn't only designed for networking, it's still an analogue cable that transports signals and voltage along a copper line - just like an audio cable.

  • Cat 5 is manufactured to a rigorous high-standard to reliably transmit data across buildings (which is very important to make the world go round!) whereas XLR cables come in varying quality and aren't designed to perform to a specific technical standard.

  • Network cables transfer huge amounts of data at very high bandwidths (1000mHz on Cat 7.... which is 1,000,000,000Hz) so comparatively speaking, transporting audio which is 20Hz to 20kHz is pretty easy and can be done with minimal crosstalk and without signal degradation.

  • One Cat 5 cable can also be used to transport up to 4 channels of fully-balanced analogue audio. It does this in the same was as analogue multicore as there are 4 twisted pairs of cables each with their own shield - they just happen to be packaged into a single cable.

  • Finally, as networking cable is ordered by the trillions, it's music more affordable than XLR cable which comparatively, is manufactured in much lower quantities. That means a 10m Cat 7 cable (which transports 4 channels of audio) can be bought at any retailer for the fraction of a price of a single XLR cable.

Cat5-1



Xlr



N22_Amp_JPEG_72dpi

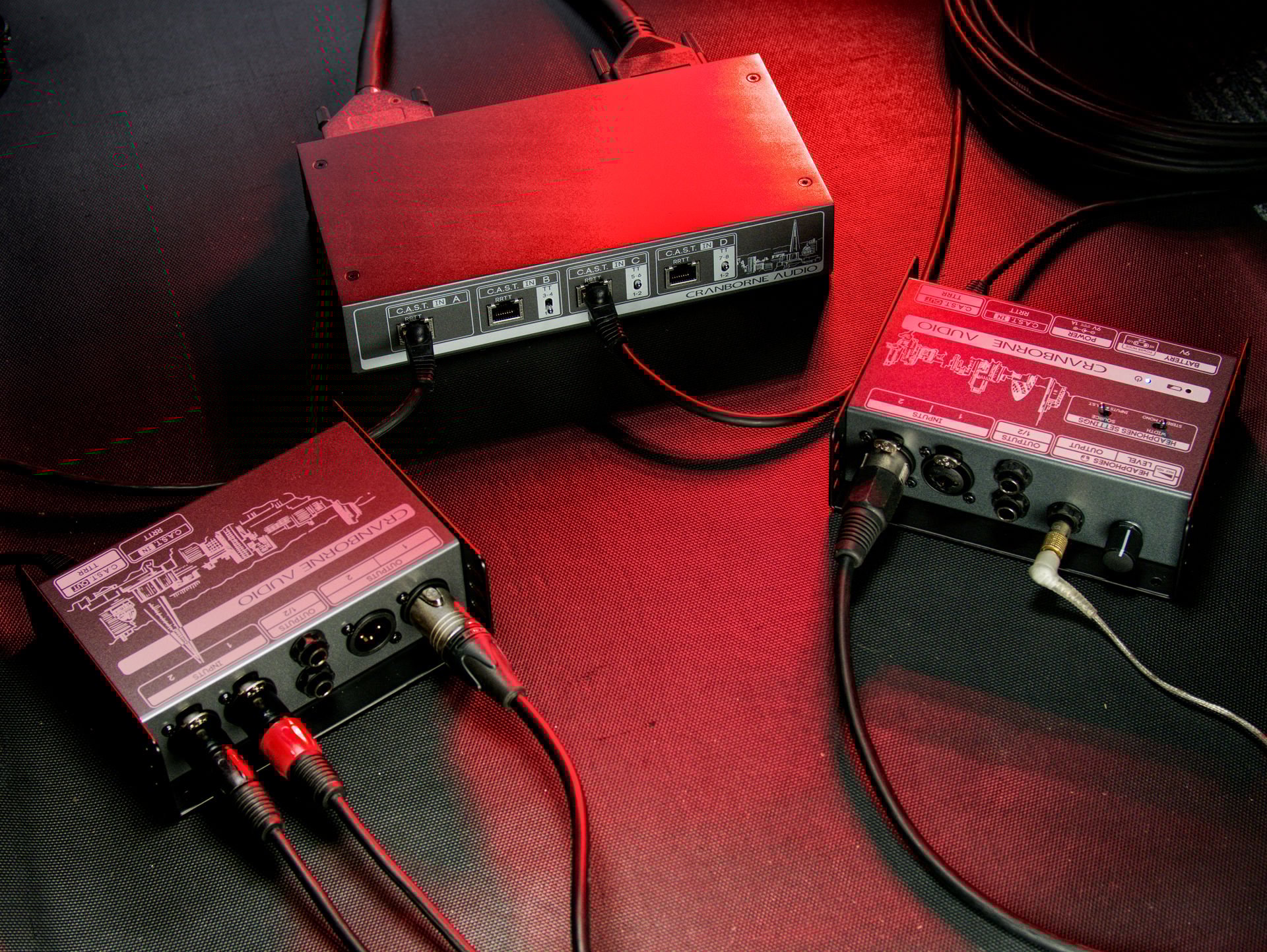

Compatible With All C.A.S.T.-Enabled Products

C.A.S.T. is a system Cranborne Audio has developed across many of their products allowing for ingenious signal routing options with plug-and-play C.A.S.T simplicity. Connect the C.A.S.T. output of these devices to N8 and they are automatically patched into your audio interface and ready to use. Products that support C.A.S.T. include the N22 and N22H breakout boxes as well as our Camden EC2 and Camden EC1 preamp, headphone amplifiers, and signal processors.

N8_CamdenEC2_Diagram

N8_CamdenEC1_Diagram



Intro_Bundle_JPEG_72dpi_WhiteBG

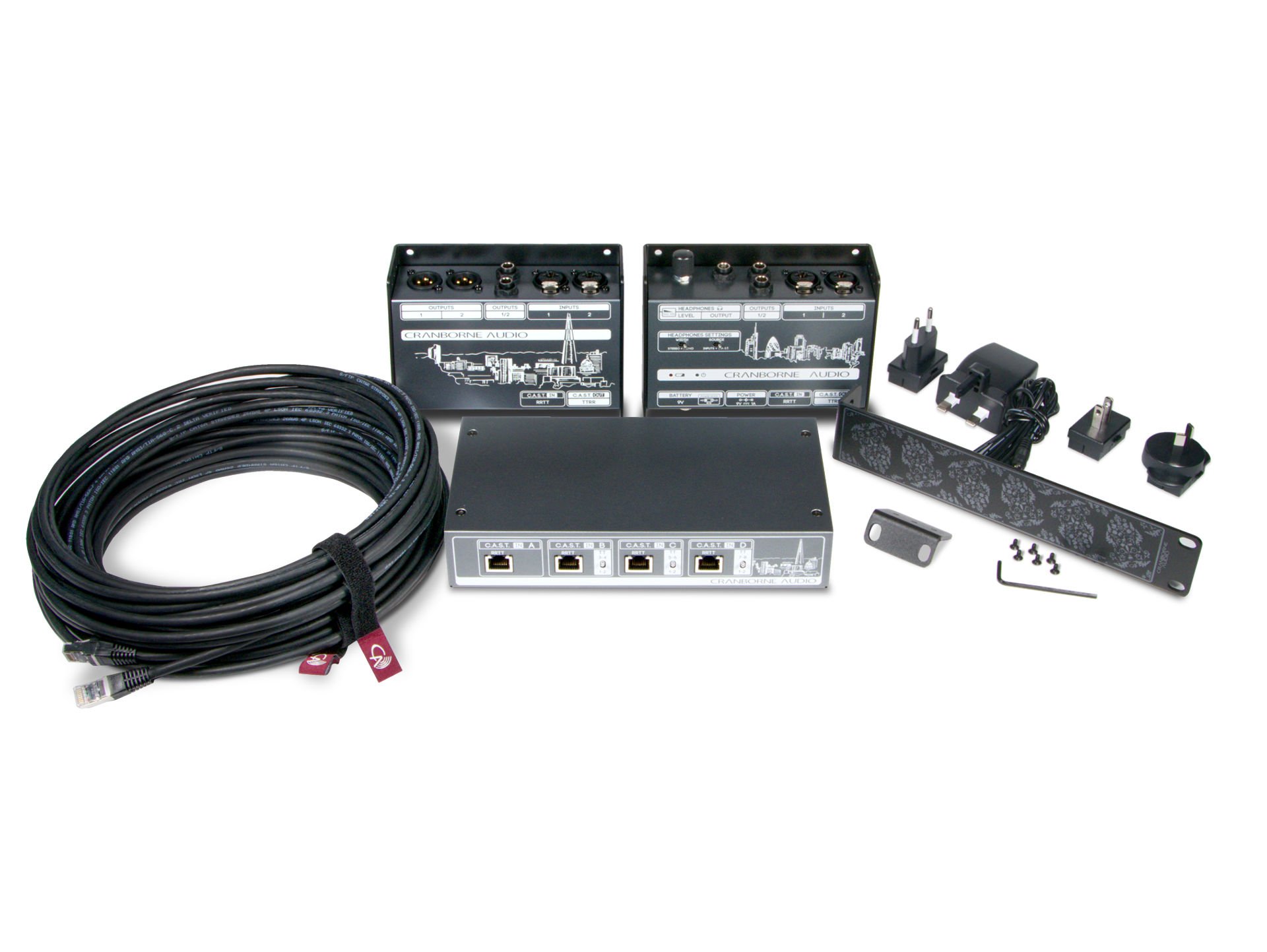

Also Available | C.A.S.T. Intro Bundle

The C.A.S.T. Introduction Bundle features all of the essential items you need to get your studio connected via Cranborne Audio’s proprietary cable management system, C.A.S.T. Featuring a central connectivity hub in the form of N8 as well as the N22 and N22H breakout boxes, the C.A.S.T. Intro Bundle is an entry-level into the world of C.A.S.T. and ships with two 10m Cat 6 cables and other accessories to get you started.

Included in the bundle:

    • N8 - C.A.S.T. Distribution Hub and Audio Over Cat 5 System
    • 19” Rackmount Kit for N8
    • N22H - Reference-Grade Headphone Amplifier, Cat 5 Snake, and C.A.S.T. Breakout Box
    • N22H 9v power supply
    • N22 - Cat 5 Snake and C.A.S.T. Breakout Box
    • 2x 10m Cat 6e Cable with custom Cranborne Audio Velcro cable ties
    • Cranborne Audio Stickers
