Cranborne Audio Brick Lane 500 Modal Compressor
  • 500 Series Modal PWM Compressor meticulously developed by the Cranborne Audio team in the UK

  • Custom PWM compression circuit and unique ‘Stress’ control for Harmonically-enriched compression effects

  • 6 Compression modes - Velvet, Float, Smash, Tame, Glue, and Polish set compression ratio, knee, compression style, and compression rate of change.

  • Threshold control and variable-range Attack and Release controls (altered per mode)

  • 12-segment LED level meter and 12-segment LED Gain Reduction Meter

  • 4 selectable sidechain HPF modes - OFF, 60Hz, 100Hz, 200Hz

  • ±20dB Input and Output/Make-up Gain Level to tailor the compression and saturation character to the source

  • OptoSync wireless communication between modules for linked controls during stereo operation

  • ⅛” TRS socket for linking non-adjacent modules

  • Circuit auto-calibration for perfect stereo matching between all modules

  • True-bypass IN/OUT switching with complete or post input trim modes available on DIP switch

  • Stepped, front-panel controls for quick recall and precise feel

All specifications are typical performance unless otherwise noted. All specifications are subject to change at any time. Tested with Audio Precision APx555.

Technical Data

Test Signal Path

APx555 (Line Out) - Input - Line Output - APx555 (Line In)

Max Input Level

+24dBu (<0.003% THD)

Max Output Level +26.5dBu (<0.003% THD)
Frequency Response  ±0.5dB, 2 Hz - 80 kHz

Noise Floor

<-100dBu (unweighted)

Dynamic Range

>118dB

Input Impedance

Line = 43 kOhms

Output Impedance

Line = 150 Ohms

Current Draw

140mA per rail - typical use case, 160mA per rail - max

Compression Specifications

Compression

Compression Element

Pulse Width Modulation

Switching Frequency

250kHz

Distortion (THD)

0dB Gain Reduction - <0.0006% THD+N, <0.00025% THD
 5dB Gain Reduction - <0.00085% THD
 10dB Gain Reduction - <0.00085% THD
 20dB Gain Reduction - <0.00085% THD

Harmonics (Stress Control) <20% THD depending on conditions
Frequency Range 200Hz - 6.2kHz
Sidechain Detection HPF Selectable - 60Hz, 100Hz, 200Hz, OFF
Minimum Attack Time (Standard) 6 nanoseconds (2 microseconds processing delay)
Minimum Attack Time (POLISH mode with Analogue Lookahead enabled) 6 nanoseconds (0 nanoseconds processing delay @ 20kHz)

Environmental

Operating Temperature

+1 to 35 degrees Celsius

Storage Conditions

-20 to 50 degrees Celsius

Dims/Weights
Unit
Width 170mm (6.6”)
Height 31mm (1.2")
Depth 133mm (5.2")
Unit Weight 0.4kg (0.9 lbs)
Shipping carton
Width 250mm (9.5")
Height 200mm (7.8")
Depth 100mm (4")
Carton Weight 0.5kg (1.1lb)



Brick Lane 500: The Modal Compression Revolution

500 Series analogue PWM Compressor with 6 operating modes and variable Stress control for harmonically-enriched compression effects.

A Technological Breakthrough in Dynamic Processing

The Brick Lane 500 represents a quantum leap in analogue compression —  a fully-analogue PWM Compressor that transcends traditional dynamics control methodologies through its revolutionary Modal PWM Compression architecture.

Key Technological Innovations:

PWM Compression for Ultimate Analogue Compression

Pure PWM (Pulse Width Modulation) analogue signal processing

Minimises undesirable compression artefacts and distortion

Infinite control of compression envelopes, onsets, and ballistics

100% analogue signal integrity with no digital conversion



Analogue Lookahead Technology

Quarter-wave predictive voltage detection provides an advanced transient anticipation mechanism

Enables zero-latency dynamics control

Prevents converter clipping with surgical precision

Exclusive to POLISH mode for ultimate mastering-grade limiting



Proprietary Modal Compression Architecture

Six distinct compression modes - VELVET, FLOAT, SMASH, TAME, GLUE, POLISH

Full control of the compression mode and envelope from ultra-fast limiting to gentler & slower compression styles

Transient Harmonic Saturation

Proprietary 'Stress' control enables nuanced audio coloration for each compression mode

Transforms compression into a creative instrument

Revolutionary Modal PWM Compression Architecture

At the heart of the Brick Lane 500 lies its groundbreaking Modal PWM Compression technology—a paradigm-shifting approach that empowers audio professionals with unparalleled compression flexibility. Unlike conventional compressors, this innovative design allows for unlimited shaping of compression envelopes and styles - without compromise.

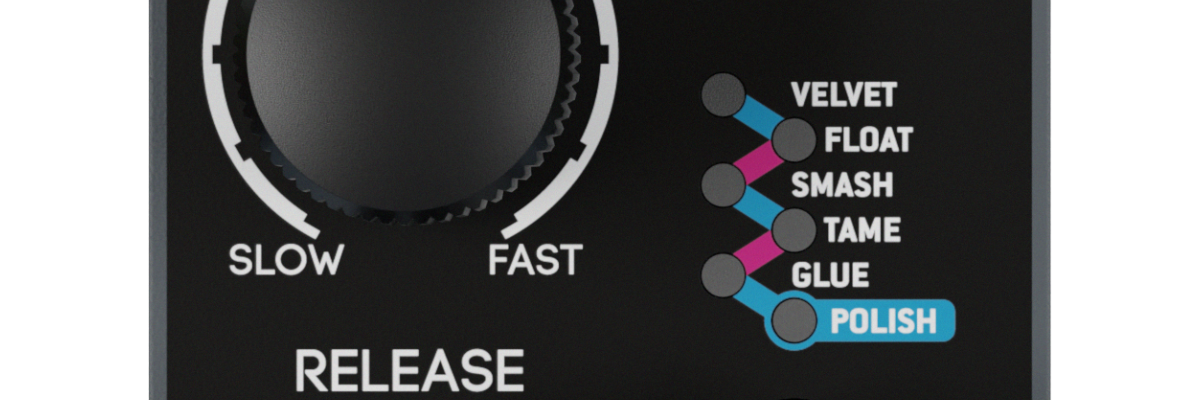

Brick Lane 500 Modes

Modal Compression: The Sonic Transformation Engine

The Brick Lane 500 introduces six distinct compression characters, each meticulously crafted to deliver unique sonic signatures:

VELVET
Vintage Vari-Mu-style musicality with Tube-inspired harmonic compression, offering smooth, organic dynamic control with vintage tonal warmth and character.

TAME
Precision transient management with ultra-fast, transparent control and surgical dynamic precision.

FLOAT
Transparent Opto-inspired dynamics with moderate transparency and gentle, wavelike compression ballistics.

GLUE
Glue together all the elements of your mix with this on your master bus for gentle bus-style compression.

SMASH
FET-style transient dominance with aggressive dynamic reduction, and explosive punch and sonic impact.

POLISH
Ultimate mastering-style limiting with the cleanest, fastest analogue limiter with our "Analogue-Lookahead" technology.

The Compression Chameleon: A Modal Metamorphosis

Imagine a single compressor that isn't just a compressor—but an entire compression arsenal compressed into one revolutionary module. The Brick Lane 500's Modal PWM Compression is like having six legendary hardware compressors at your fingertips, each with its own distinct personality, sonic signature, and dynamic DNA. Each mode isn't merely a setting; it's an entirely different compression philosophy.

Every mode effectively rewires your patchbay and brings you a totally different style of compression, featuring unique compression ballistics that fundamentally transform the unit's behavior. Attack and release controls morph dramatically across modes—from glacially slow Vari-Mu-style curves to lightning-fast FET-like responsiveness. Compression ratios dance between gentle 2:1 nudges and aggressive 20:1 sonic obliterations. The knee characteristics shift from buttery-smooth rounded edges to razor-sharp precision.

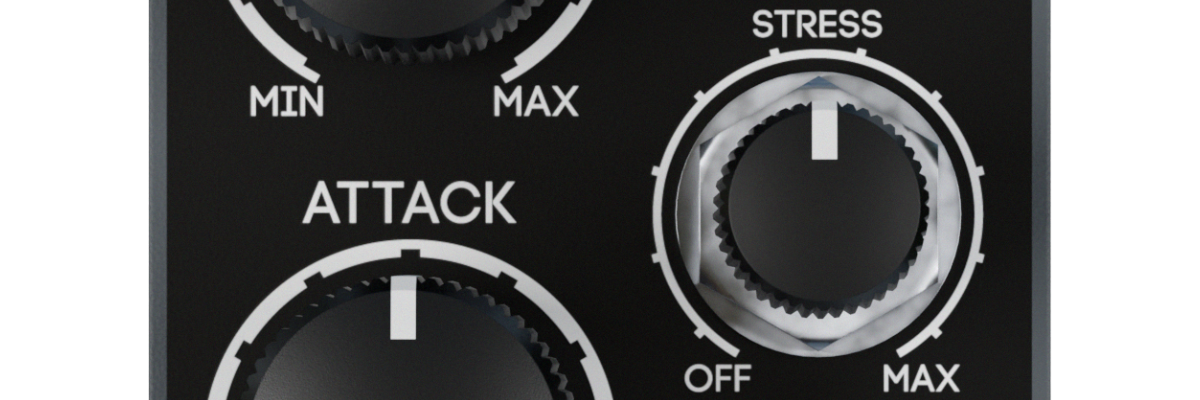

Brick Lane 500 Stress

Stress Control: A Sonic Shapeshifter

The 'Stress' control becomes a chameleon, radically changing its harmonic character and saturation profile in each mode. What adds subtle tube warmth in VELVET becomes a transient-destroying beast in SMASH, a mix-gluing agent in GLUE, and a loudness/clipping finalizer in POLISH. It's not just a feature—it's a sonic shapeshifter that redefines compression as a creative sound design and mixing tool.

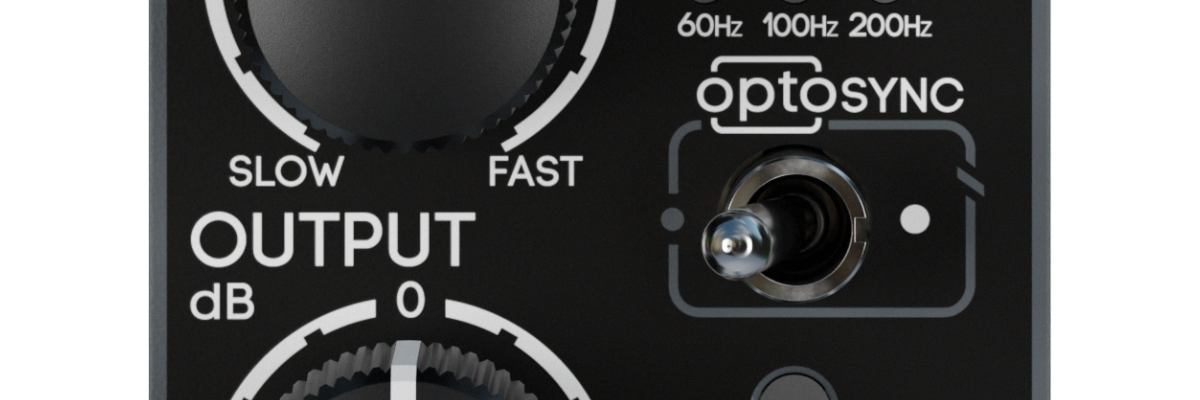

Brick Lane 500 Optosync

Stereo-Link via OPTOSYNC

Brick Lane 500 features Cranborne Audio’s OPTOSYNC technology, enabling two Brick Lane 500 units to work as a perfect stereo pair for mixes and stereo sources.

Using OPTOSYNC, all controls are synchronized from the left unit to the right without cables or internal fixings. Switch OPTOSYNC for all slave units to ON and its controls all synchronize to the master unit wirelessly using LED and optical communication. You can also use OPTOSYNC to link together multiple units for applying the same sonic footprint across entire summing mixers or multi-channel surround mixes.

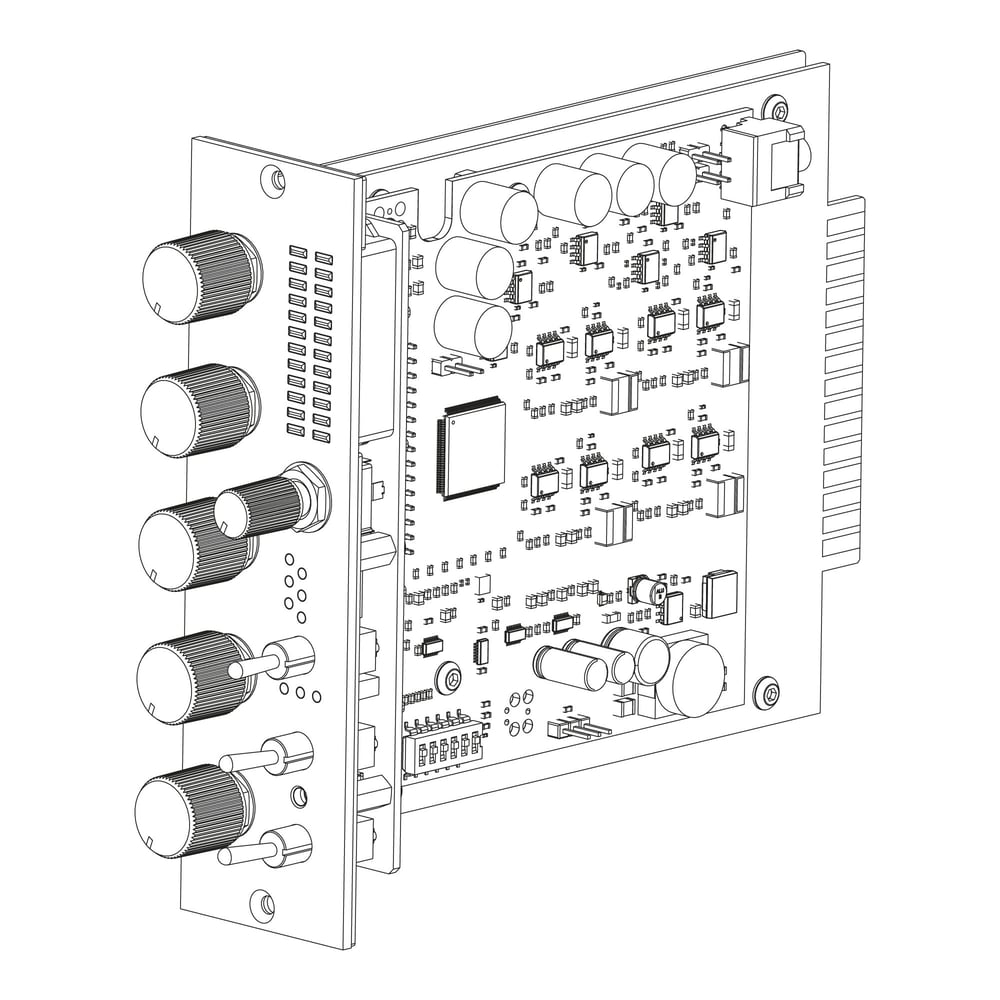

Brick Lane 500 Line Art

Rugged Industrial Design And Automatic Calibration

With rugged and unique structural support, custom 41-way detented pots on every control, as well as Automatic Calibration of all analogue saturation paths, Brick Lane 500 is a timeless processor designed to be a constant audio-enhancer in your studio for years to come.

Engineering Precision Meets Musical Intuition

The Brick Lane 500 is not merely a compressor—it's a sophisticated sonic instrument designed for audio professionals who demand absolute control and exceptional sound quality. Whether tracking, mixing, or mastering, this modal compressor adapts to your most demanding audio sculpting requirements.


Redefine your approach to dynamic processing with the Brick Lane 500—where technological innovation meets musical expression.

Brick Lane 500 Videos
